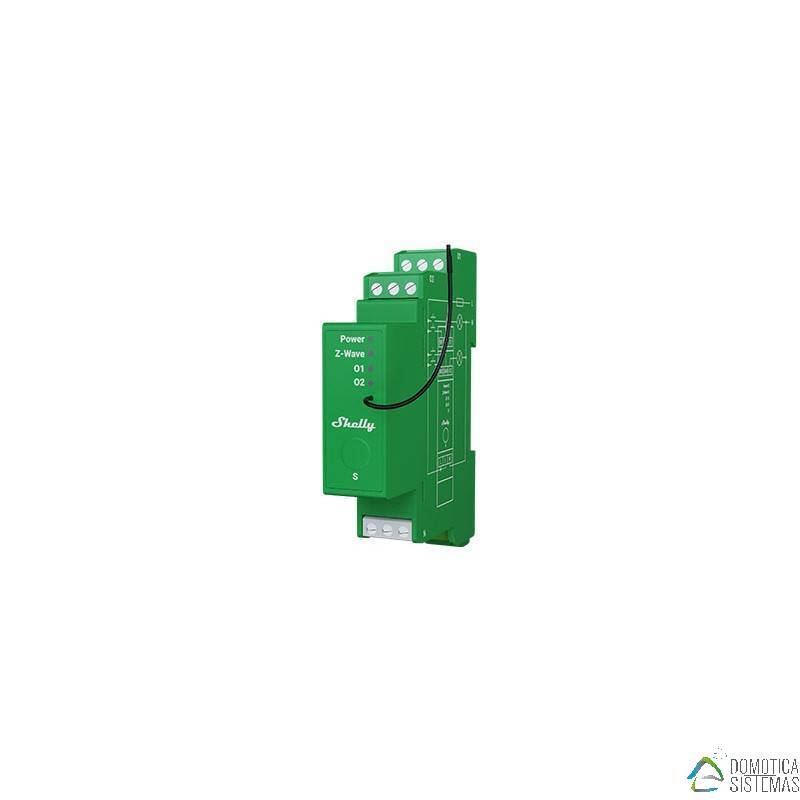

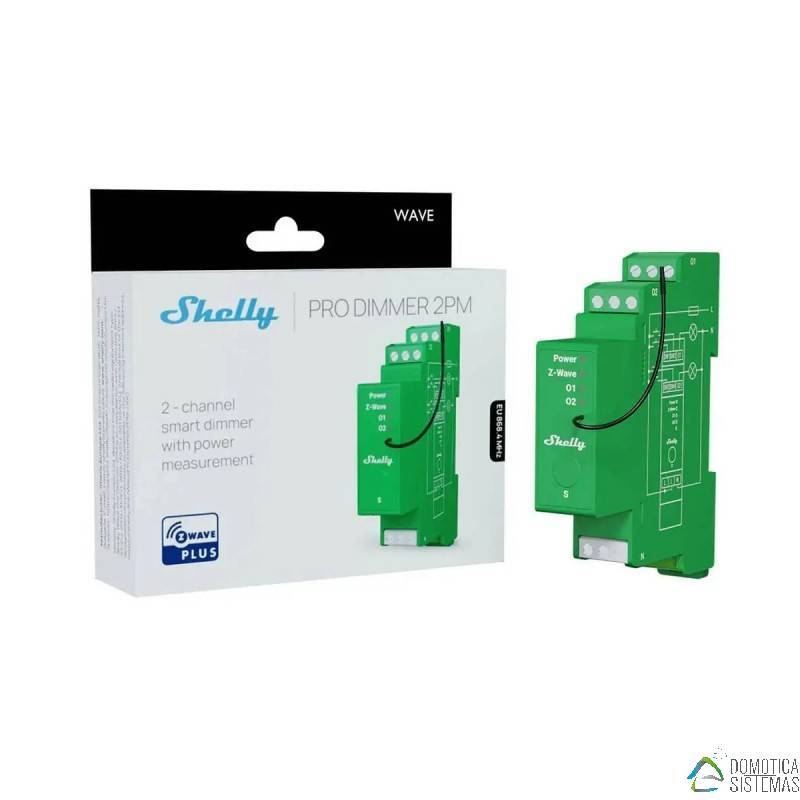

Shelly Qubino Wave Pro Dimmer 2PM

Power supply

110 - 240 V AC, 50/60 Hz

Power consumption

< 0.3 W

External protection

10 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3

Dimming type

Trailing edge

Power measurement [W]

Yes

Max. output power

200 W per channel

Overheating protection

Yes

Overload protection

Yes

Overvoltage protection

Yes

Distance

Up to 40 m indoors (131 ft.) (depends on local condition)

Z-Wave® repeater:

Yes

CPU

Z-Wave® S800

Z-Wave® frequency bands

868.4 MHz

Maximum radio frequency power transmitted in frequency band(s)

< 25 mW

Size (H x W x D)

94x19x69 ± 0.5 mm / 3.70x0.75x2.71 ± 0.02 in

Weight

75 g / 2.7 oz

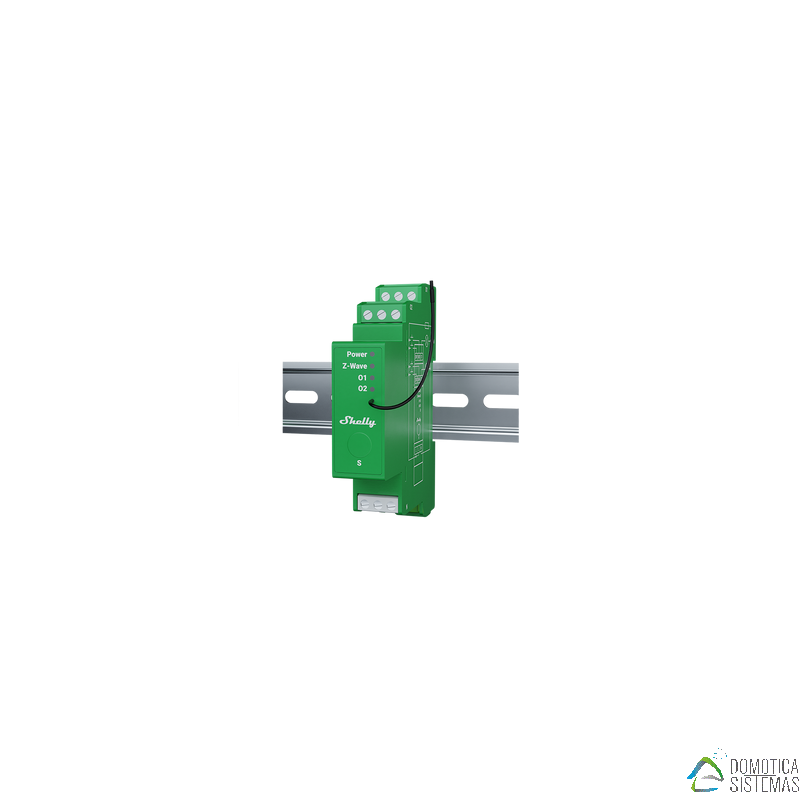

Mounting

DIN rail

Screw terminals max. torque

0.4 Nm / 3.54 lbin

Conductor cross section

0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (white connectors)

Shell material

Plastic

Color

Lime

Ambient temperature

-20°C to 40°C / -5°F to 105°F

Humidity

30% to 70% RH

Max. altitude

2000 m / 6562 ft.
